Highway Solar Lights

The generally speed of a car on the highway is in 60-130KM/H, and the width of the highway is generally 8-15M width in a single direction, it needs a wider lighting area and high brightness light to ensure the safety of the vehicle driving. The illumination level belongs level 1 road grade according to National standartl Lux of led street light.

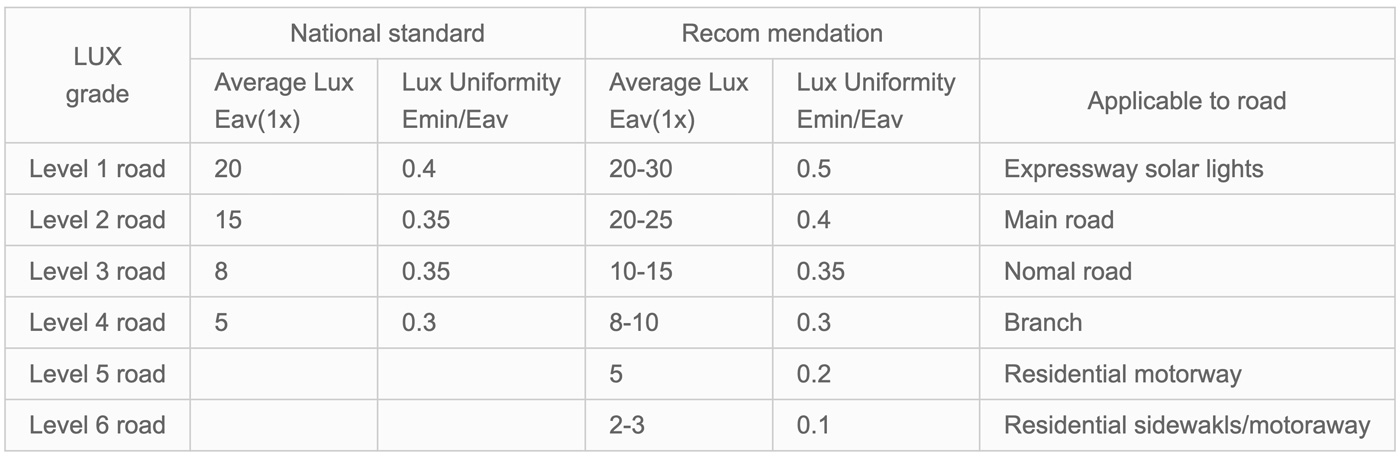

NATIONAL STANDARD LUX OF LED STREET LIGHT

bei-1

Lights Arrangement Types Of Highway Recommend TYPE-B / TYPE-C / TYPE-D

Highway-Solar-Lights_06

One-sided lighting

Highway-Solar-Lights_08

Double-sided “Z”-shaped lighting

Highway-Solar-Lights_10

Symmetrical lighting on both sides

Highway-Solar-Lights_12

Symmetrical lighting in the center of the road

Brightness Of Highway Working Mode Options

Mode 1 : Work at full brightness all night.

Highway-Solar-Lights_74jpg_19
Highway-Solar-Lights_334_19
Highway-Solar-Lights_777_25

Mode 2 : Work at full bightness before midnight, work in dimming mode after midnight.

Highway-Solar-Lights_19
Highway-Solar-Lights_21
Highway-Solar-Lights_23

Mode 3 : Add a MOTION SENSOR, the light is 100% on when there is a car passing by, work in dimming mode when there is no car passing by.

Highway-Solar-Lights_29

From the perspective of cost, Model 1 > Model 2 > Model 3

Light Distributions Mode Of Highway Recommend TYPE II & TYPE III

Light Distributions Model

In the IESNA
Standard, The Type I distribution is great for lighting walkways,
paths and sidewalks. It is generally applicable to where the
mounting height is approximately equal to the roadway width.
In the IESNA Standard, the Type II distribution is used for wide walkways, on ramps and entrance roadways, as well as other long, narrow lighting. It is generally applicable to where the width of the roadway does not exceed 1.75 times the designed mounting
height.

The Type V lens of BOSUN solar street light . In the IESNA Standard,It is intended for luminaire mounting at or near center of roadways,center islands of parkway, and intersections. It is also meant for large, commercial parking lot lighting as well as areas where suticient, evenly distributed light is necessary.

Recommended Models To Highway Solar Street Lights

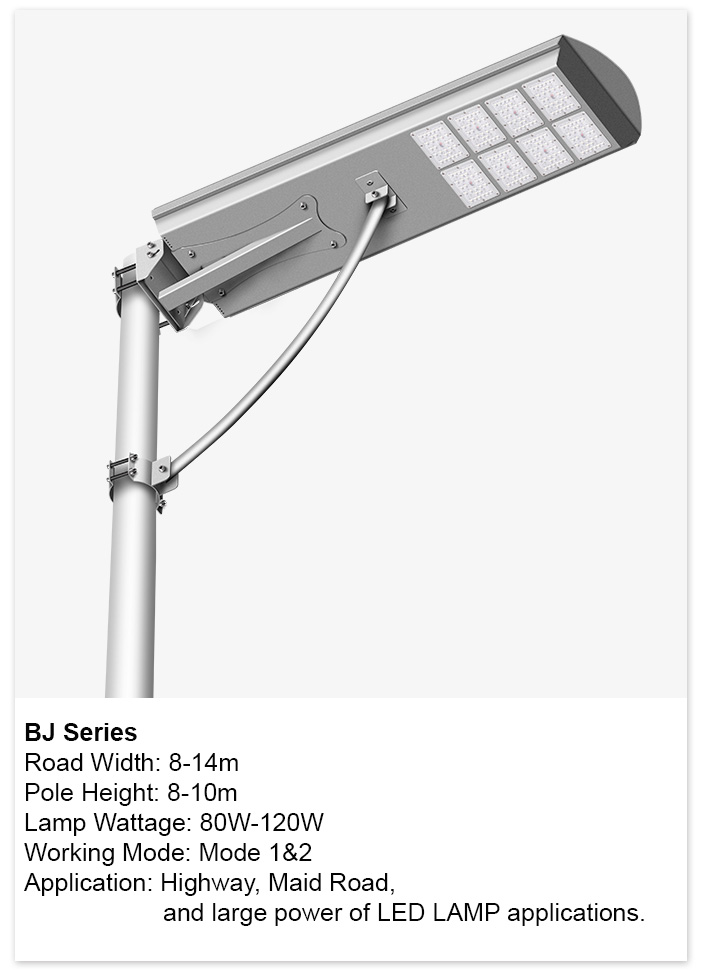

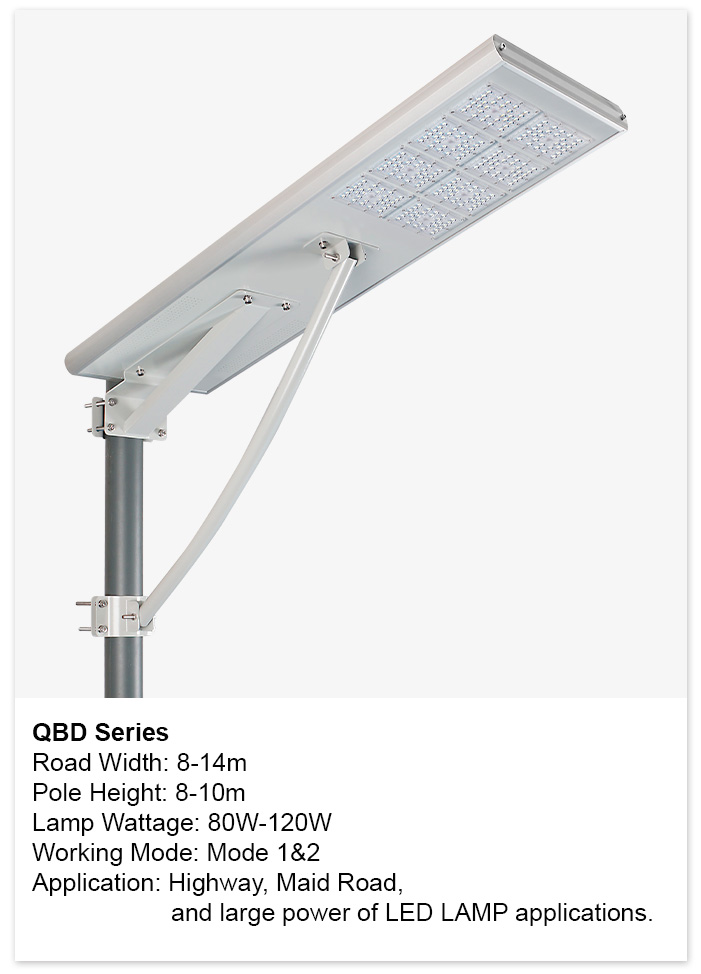

All In One Solar Lights

BOSUN lighting all in one solar powered street lights is the most compact model. It integrates all components such as solar panel, lithium batteries and BOUSN lighting patent technology Pro-Double MPPT solar charge controller and Philips LEDs all together with the lighting fixture as one unit with high lumens output.

Highway-Solar-Lights_47
Highway-Solar-Lights_49

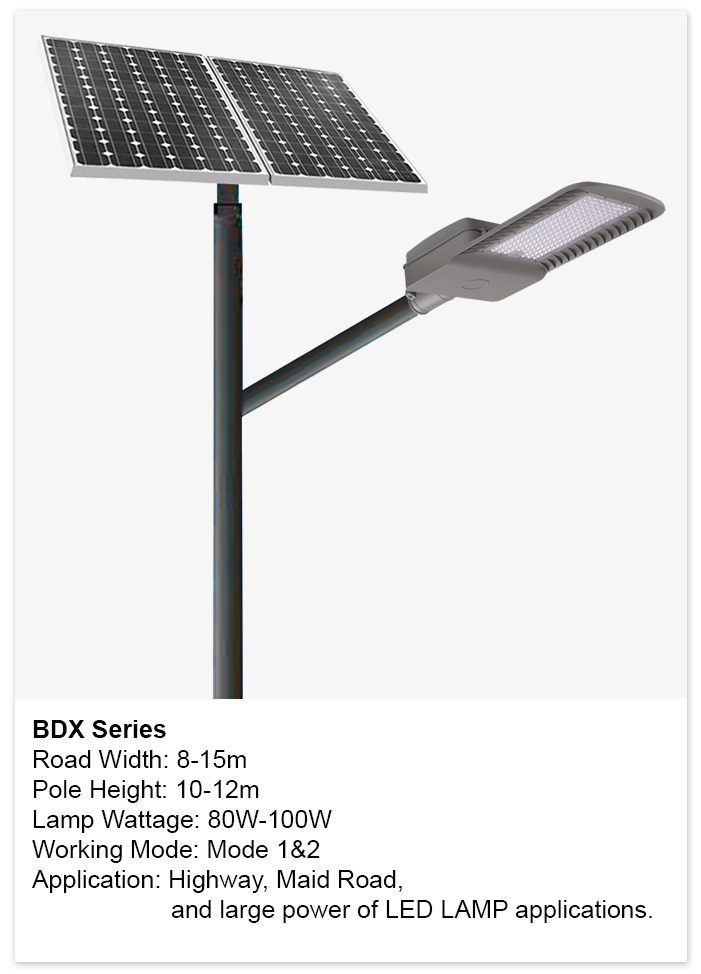

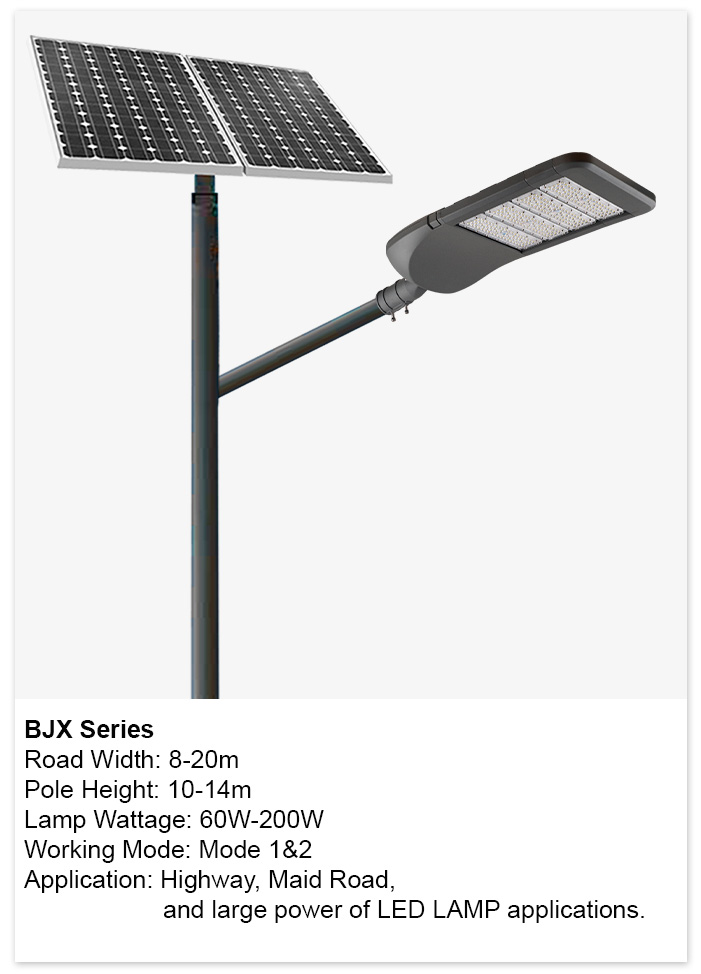

Split-Type Solar Street Light

The whole system adopts split design with IP65 water proof, with completely separate design of solar panel, LED Lamp and Lithium Battery Unit. Lithium Battery units are usually mounted under panels or hung from light poles. Because the size of solar panel and Lithium Battery Unit can be large without limitation, it can support high-power LED lamp output to work for a long time, but the installation is more complicated than other models.

Highway-Solar-Lights_53
Highway-Solar-Lights_54
