Urban Road Solar Lights
Urban street lighting is to provide lighting for vehicles and pedestrians at the same time, generally for a single direction 7-10M width. Especially in the early evening, there is a big number of vehicles and pedestrians at this time, then the lighting area requirements wide as well as illumination requirements higher. But at midnight, vehicles and pedestrians gradually decrease, the illumination can be reduced also, thus achieving a more energy-efficient lighting effect.

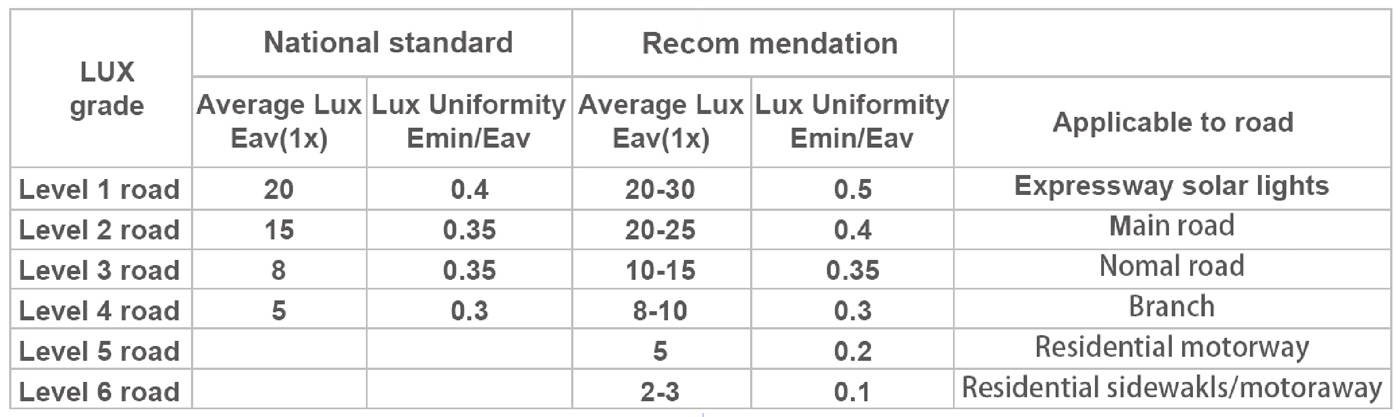

National Standard Lux Of Led Street Light
Lights Arrangement Types Of Urban Road Recommend TYPE-A/B/C/D
One-sided lighting
Double-sided “Z”-shaped lighting
Symmetrical lighting on both sides
Symmetrical lighting in the center of the road
Brightness Of Urban Road Working Mode Options
Mode 1 : Work at full brightness all night.
Mode 2 : Work at full bightness before midnight, work in dimming mode after midnight.
Mode 3 : Add a MOTION SENSOR, the light is 100% on when there is a car passing by, work in dimming mode when there is no car passing by.
From the perspective of cost, Model 1 > Model 2 > Model 3
Light Distributions Mode Of Urban Road Recommend TYPE II & TYPE III
Light Distributions Model
Recommended Models To Urban Road Solar Street Lights

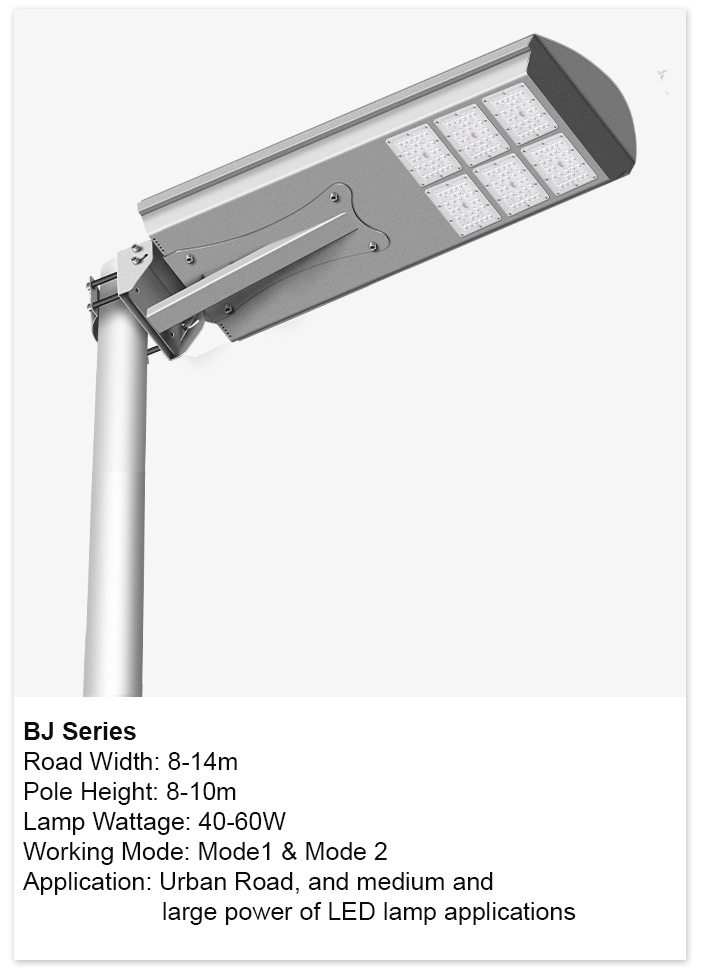

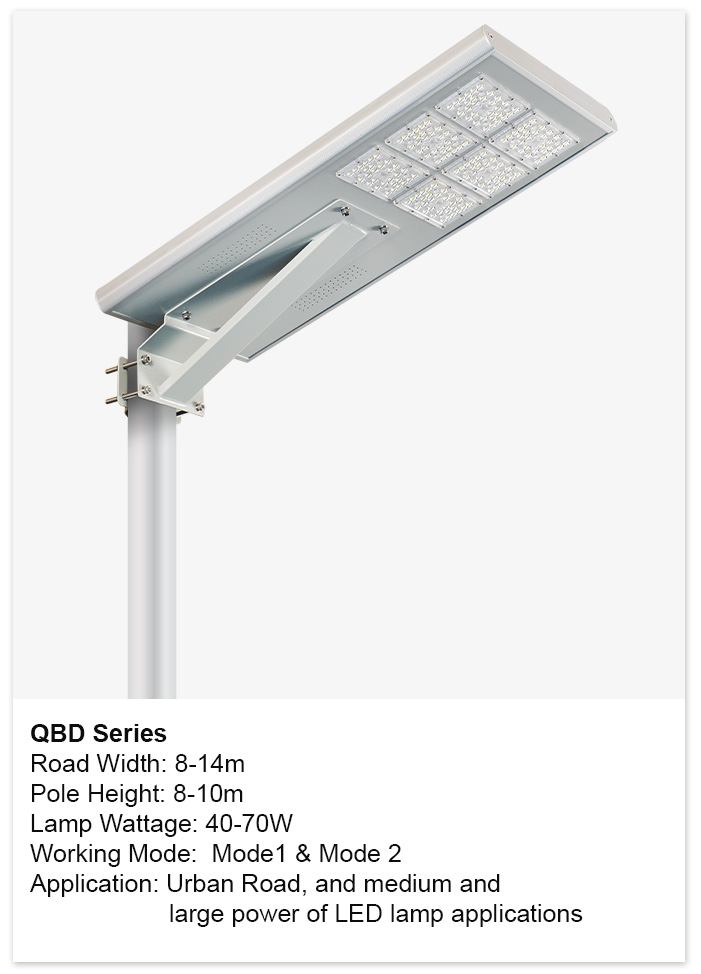

All In One Solar Lights
BOSUN All In One Intergrated solar street light series is the most compact model. It integrates all components such as solar panel, lithium battery, solar controller and LED lighting source all together with the lighting fixture as one unit.

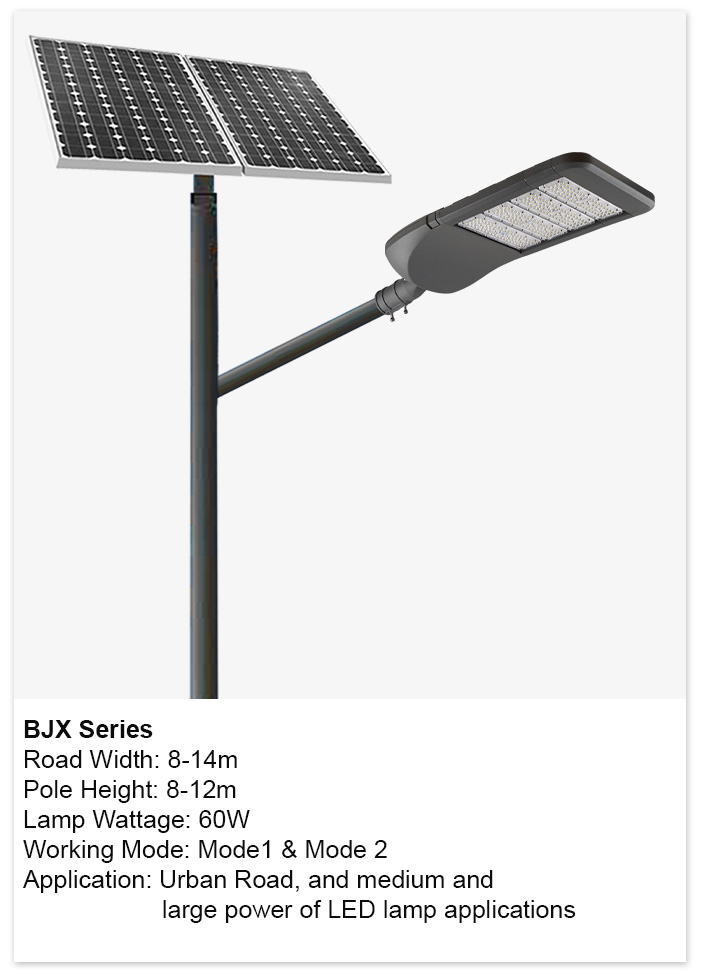

Split-Type Solar Street Light
BOSUN split-type solar panel street light is the whole system adopts split design, with completely separate design of solar panel, LED Lamp and Lithium Battery Unit. Lithium Battery units are usually mounted under panels or hung from light poles. Because the size of solar panel and Lithium Battery Unit can be large without limitation, it can support high-power LED lamp output to work for a long time, but the installation is more complicated than other models.
PROJECT REFERENCE
